Overview

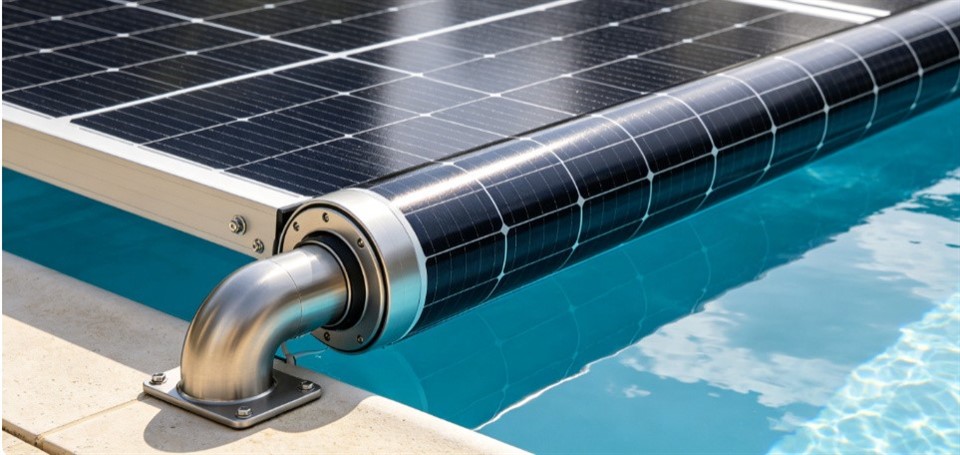

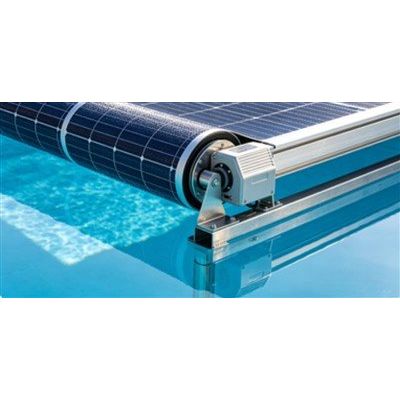

The Electric Solar Swimming Pool Cover With Metal Roller is driven by a high-torque electric motor and supported by a heavy-duty metal roller mechanism, powered by high-efficiency solar panels.
Product Specification
|
Category |
Key Specification |
|

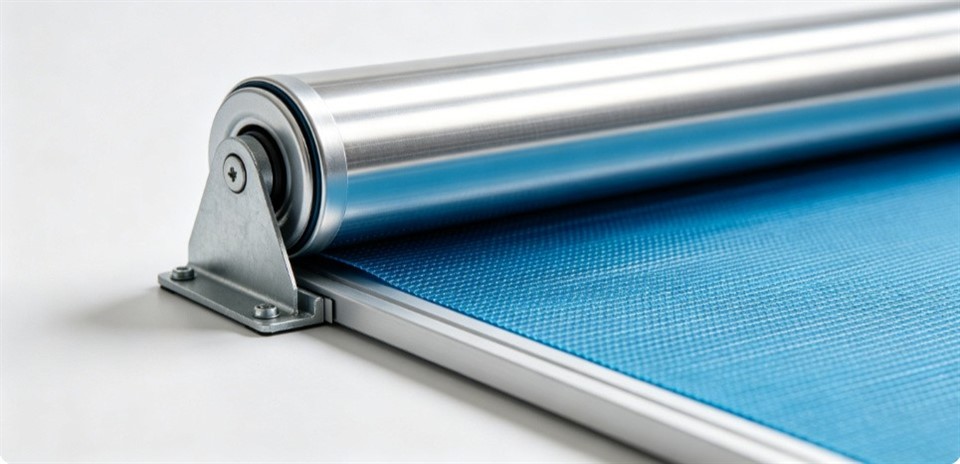

Roller Structure |
6063-T6 aluminum alloy, Ø110mm, 3.5mm wall thickness |
|
Solar Power System |
40W monocrystalline panel, 22.5% efficiency, 180° adjustable bracket |
|
Energy Storage |
24V 12Ah LiFePO4 battery, supports ~45 full open/close cycles per 6-hour charge |
|
Load Capacity (Cover Slats) |
PVC/PC slats rated up to 120 kg/m² static load |
|
Pool Width Compatibility |
Modular system: 3.0 m – 6.5 m span |
|
Operation Speed |
12m × 6m pool full cycle in 85 seconds |
|
Noise Level |
<48 dB during operation |
|
Structural Stability |
Anti-sag design for spans up to 7m |
Key Feature
SUS316 Hardware: All structural fasteners, brackets, and mechanical components are machined from SUS316 stainless steel to prevent galvanic corrosion in salt-water chlorinator pools.
Anodized Roller Tubes: Aluminum roller shafts feature a 20μm clear anodized coating, verified by 1,000-hour continuous salt spray testing (ASTM B117) to prevent surface pitting and mechanical seizing.
Impact-Resistant Slats: Double-walled Polycarbonate (PC) slats with a 50μm co-extruded anti-UV layer, rated for 50mm hailstone drop-impact without structural cracking.
Thermal Efficiency: Hollow-chamber profiles deliver an R-value of 0.22, reducing pool water evaporative heat loss by up to 82%.
Chemical Resistance: Engineered for active free chlorine environments up to 5.0 ppm and continuous water pH ranges from 6.8 to 8.2.
Application & Adaptability
On-Deck Top Mount
Surface-mounted end-stands anchor directly to concrete, stone, or timber decking without excavation or coping modification.
In-Wall Submerged Setup
Concealed roller engineering for wet-niche recesses behind the pool wall, maintaining clear deck space.
Bench Enclosure System
Integrated within an IPX5-rated structural PVC or aluminum bench, load-tested for 250kg static weight to serve as poolside seating.
Custom Geometries
Slat tapering and custom step-flaps available for Roman-end, kidney, and irregular freeform pool layouts.
OEM Capabilities & Customization
Commercial Scaling
Custom roller spans manufactured up to 15 meters for institutional and Olympic-scale public facilities.
Drive Train Integration
Motor torque output is calibrated to specific cover weights, spans, and operational friction profiles.
Finishes & Branding
Structural components available in any standard RAL code (Default: Black, Silver, White). Laser-etched distributor branding available on motor housings.
BMS Integration
Control panels support Tuya, Zigbee, and KNX modules for automated building management systems.
Commercial Terms
MOQ & Material Tiers: Base wholesale MOQ is 10 complete systems per shipment. Available in Standard PVC or High-Impact Polycarbonate (PC).
ISTA-3A Packaging: Shipped in ISTA-3A certified, multi-layer reinforced plywood crates with custom-fit EVA foam cradles to prevent maritime transit damage.
Container Optimization: Fits up to 35 complete sets in a standard 20GP container, and up to 78 sets in a 40HQ container.
Project Sampling: Custom-dimensioned samples for commercial engineering mock-ups are dispatched within 14 working days.
Lifecycle Support
Factory Warranty:
5-year replacement warranty on SUS316/Aluminum roller structures.
3-year warranty on electronic motors and control systems.
3-year warranty for Polycarbonate (PC) slats / 2-year warranty for PVC slats.
Technical Documentation: White-label PDF installation manuals and 4K step-by-step video guides for local field technicians.
Maintenance Buffer: All FCL (Full Container Load) orders include a 2% volume buffer of matching spare slats and end-caps for rapid local servicing.
Component Replacement: Verified manufacturing defects trigger air-freight replacement parts dispatched within 7 working days.
Safety Standards & Certifications
Drowning Prevention
Fully compliant with French safety standard NF P90-308 and ASTM F1346-91 load requirements for automatic safety covers.
Electrical Safety
Drive trains, control enclosures, and low-voltage battery backups carry CE, RoHS, and UL listings for wet-zone installations.
Wind Resistance
Equipped with heavy-duty mechanical locking straps and low-profile deck anchors rated for wind gusts up to 90 km/h.
FAQ
Q: How long does the system typically operate before major maintenance is required?
A: In commercial pool environments, the system is engineered for long-cycle daily operation over multiple seasons. Key wear components are modular and designed for quick replacement without full system shutdown.
Q: What is the expected lifespan of the motor and power system?
A: The drive system is designed for multi-year continuous operation under standard residential and light commercial duty cycles. Battery performance gradually declines over time and is typically planned for replacement within a multi-year maintenance schedule.
Q: Can the system operate reliably in extreme weather conditions?
A: It is engineered to handle wide temperature variations and high humidity exposure typical of outdoor pool environments. In regions with freezing conditions, seasonal protection procedures are recommended to extend service life.
Q: How long does installation usually take on a standard pool?
A: For a standard rectangular pool, installation can typically be completed within a short on-site construction window using a small technical team. Installation complexity depends mainly on mounting type and deck structure readiness.
Q: What happens if a single slat or component gets damaged?
A: The system is modular, allowing individual slats or mechanical components to be replaced independently. This avoids the need to dismantle the entire cover system during maintenance.
Q: Are there any long-term operating costs beyond electricity?
A: Beyond minimal power consumption, the main long-term costs relate to periodic inspection and replacement of wear parts. These are designed to be predictable and scheduled rather than unexpected failures.
Q: How is system reliability verified before shipment?
A: Each unit undergoes functional cycling tests under load conditions prior to packaging. Only systems passing full operational verification are released for export shipment.
Q: Is the system suitable for long-term commercial pool usage?
A: Yes, it is designed for both residential and commercial environments where frequent daily operation is required. Load and duty-cycle design considerations make it suitable for hotels and public facilities.
